PreSonus StudioLive 24R

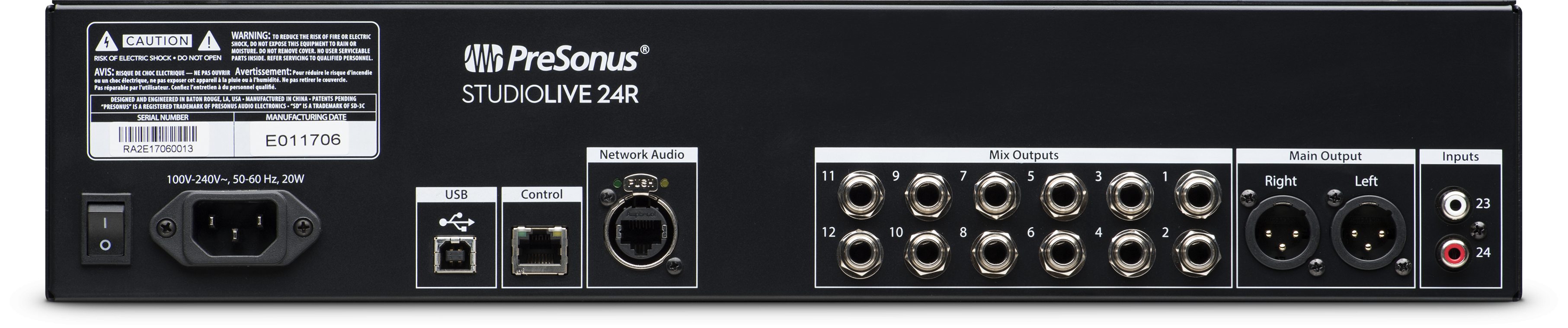

Local Inputs and Outputs

• 26 total inputs
•         24 mic/line channel inputs + 2 RCA inputs
• 12 ¼-inch TRS FlexMix outputs
• 2 XLR (L/R) Main outputs
• Stereo headphone output

Channels and Buses

• 32 input channels
•         24 analog, AVB, or USB
•         8 AVB or USB
• 2 stereo aux inputs (AVB or USB)
• 1 stereo digital return (SD Card, AVB, or USB)
• 26 buses:
•         16 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
•         4 dedicated subgroups
•         4 internal effects sends
•         Stereo main bus
• 24 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections

• 1 Ethernet control network port
•         Dynamic, Self Assigned, and Manual IP address modes
• 1 Locking XLR Ethernet AVB audio network port

Recording

• Onboard stereo SD recorder
• 40x40 USB recording interface
• 55x55 AVB recording interface

Signal Processing

• Intuitive Fat Channel signal processing on every channel with:
•         A/B settings comparison
•         Highpass filter and polarity reverse
•         Gate/expander with sidechain
•         Compressor with sidechain
•         4-band parametric EQ on inputs
•         6-band parametric EQ on outputs
•         Limiter
•         Delay on every input
•         Delay on every output
•         Professionally programmed library of presets
• Vintage EQ and compressor models available on every input
•         Passive EQ
•         Vintage EQ
•         Tube compressor
•         FET compressor
• 8 31-band graphic EQs
• 4 internal effects buses: combination of reverbs and delays with modern and vintage options
• Built-in real-time analyzer

Scenes and Presets

• Create, save, and edit up to 100 scenes
• Scene management with:
•         Scene Safeprevents a scene change from affecting designated safe channels
• Create, save, and edit channel settings and copy/paste between channels
• Advanced channel preset options can save and recall:
•         Channel type and name
•         Input settings (preamp, +48V phantom power, polarity, pan)
•         Fat Channel A & B settings
•         Bus assignments
•         Aux and effects send levels and pan
•         Select button color
• 8 Quick Scenes
• 8 Mute groups

Digital

• Studio-quality converters with 115 dB dynamic range
• 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

Actively Integrated Software

• UC Surface touch control software for Mac®, Windows®, iPad®, and Android
• Studio One® Artist digital audio workstation software for Mac and Windows
• Capture multitrack recording software for Mac and Windows
• QMix®-UC aux-control software for iOS® and Android available free from Apple App Store and Google Play
